Product Introduction

Our inflatable packaging system named as Airtek, which is small size, high yield, and easy to carry, is an ideal void-fill packaging solution for large-scale e-commerce and logistics industries.

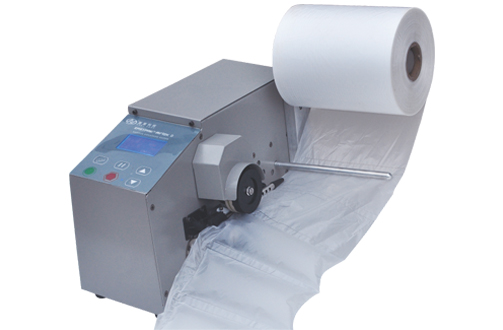

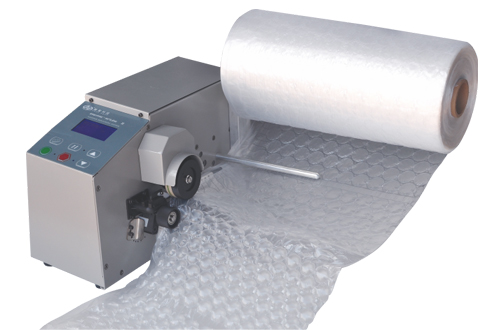

The device is light and simple, weighing less than 20Kg. It’s with the size of only 45cm * 50cm * 50cm and attached with  a 220V plug. Where there is a socket, you can plug to use easily either in the packaging workshop or office where you need to use. The equipment is simple to operate. After loading the film roll on the machine, once you gently press a button, you can continue to produce inflatable bags for use, up to 160 inflatable bags per minute with a tear line which can easily be teared with the amount of the inflatable bags needed. It also can be produced in advance and installed in the appropriate storage box and then distributed to the packaging points to use.

Meet safety and environmental requirements:

Equipment with CE certification.

Film with SGS-related harmful substances test report.

Product advantages

1．lightweight, plug to use, small working area needed

2．Fill in air only when packaging needed. Film only takes less than 1% of the entire inflatable bag volume.Save a lot of storage space and material transport costs.

3．the filler taken from the air, is an excellent environmentally friendly material.

4．the filler is air, almost no weight, which will not increase the cost of logistics and achieve the packaging effect of protection and void fill.

Materials needed for inflatable packaging system

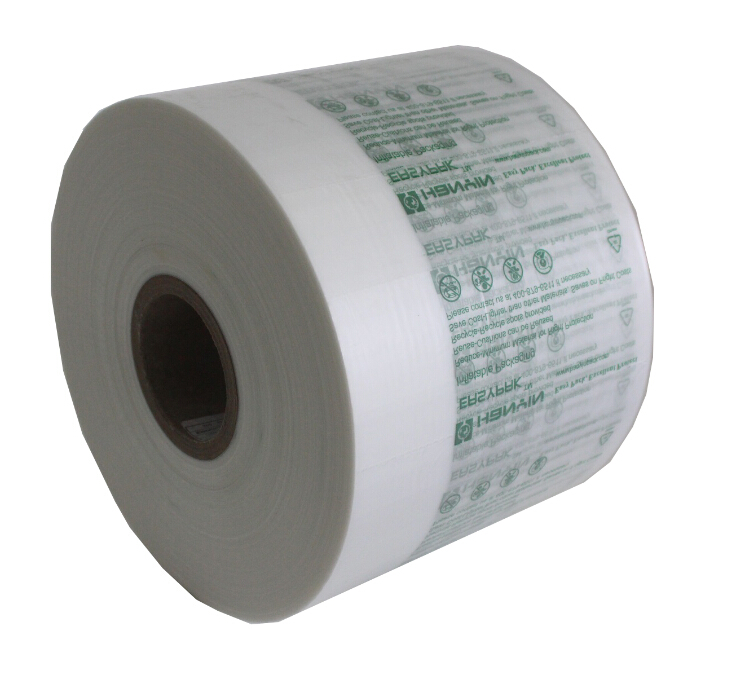

1．  films

● the strength of the inflatable bag can reach 80kg /㎡, which can play a protective effect for most of the items; the sealing is excellent, so that the bag can maintain more than 80% of its original volume even if stored for six months.,

● One can print your own company logo on the inflatable bag, as a corporate identity so as to enhance the corporate image as long as the MOQ is reached.

● We have the following size and thickness of the inflatable bags for customers to choose:

20cm*20cm

20cm*13cm

20cm*10cm

13um&20um&30um&38um

2、Bag Courier Delivery System（Bagcourier)

Bagcourier with mobility, you can always adjust the position to support other operations pipeline

Easypak® Airtek inflatable packaging machine can also be used in conjunction with the Bag Courier system to continuously mass-produce inflatable bags and distribute them to several packaging sites. These two sets of equipment, which can highly efficiently produce a large number of packaging materials to several packaging sites to use, have been widely used in logistics and packaging operations.

Our packaging technology team can provide on-site assessment planning, measurement design and installation and adjustment, to help customers design the optimal packaging line configuration, providing a complete set of solutions.

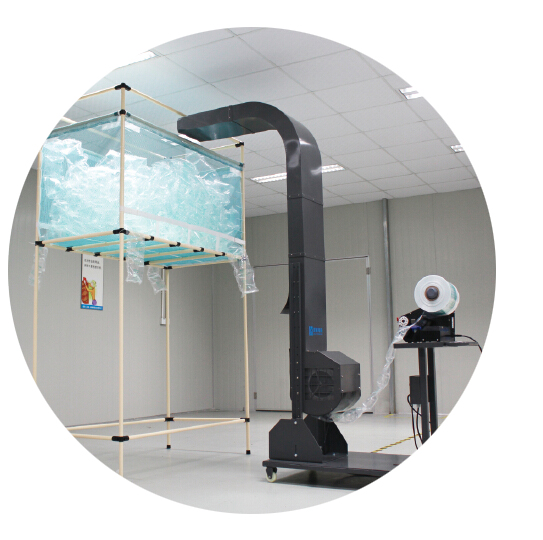

The Bag Courier consists of a transport channel and a silo at the end of the channel. The Bag Courier can be used to efficiently transfer inflatable bags to the terminal silo. The advantages of the Bag Courier include:

1. Conveying packing material to the silo above the packing sites via piping to the top can save valuable floor space and eliminate ground disruption.

2. One set of inflatable bag packaging system through the Bag Courier can support multiple packaging sites, effectively reducing the customer's equipment investment costs.

3. Bag Courier is mobile so that it can be adjusted the location or support other bottlenecks in the site anytime and anywhere.

Product operation video

 ;
